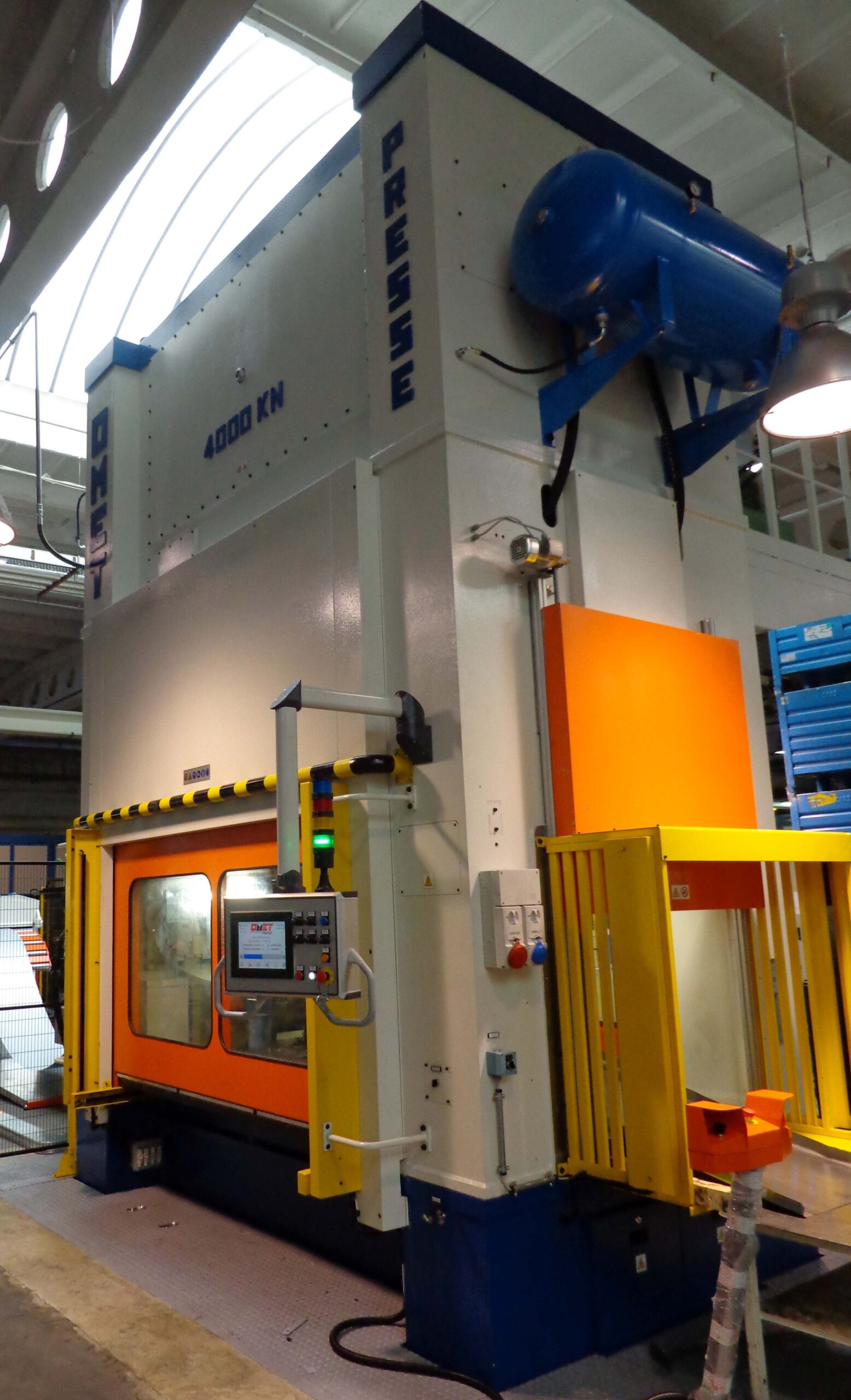

OMET 400

Technical Features

Press

Rated force [kN] 4,000 (400t)
Table dimensions [mm] 2,500 × 1,400
Stroke [mm] 500
Variable speed [spm] 10 ÷ 30
Table–slide distance at B.D.C. (upward adjustment) [mm] 720
Slide adjustment [mm] 200
Lateral clearance [mm] 1,100
Main motor power [kW] 55
  • Hydraulic clutch
  • Possibility of load unbalancing 60% – 40%
  • Front and rear guards with sliding panels + optoelectronic barriers
  • Anti-vibration mounts

Feeding line (decoiler + straightener + feeder)

Max strip width [mm] 1,100
Max thickness with width 1,100 [mm] 2
Max decoiler capacity [kg] 7,000
Max feeder speed [m/min] 100

Other equipment

  • Perimeter safety fence with 3 interlocked access points
  • EC declaration of conformity for the entire assembly
